Stericup Quick Release -GP Vacuum Filtration System 500mL 0.22um PES Express Plus Membrane

Description

Information:

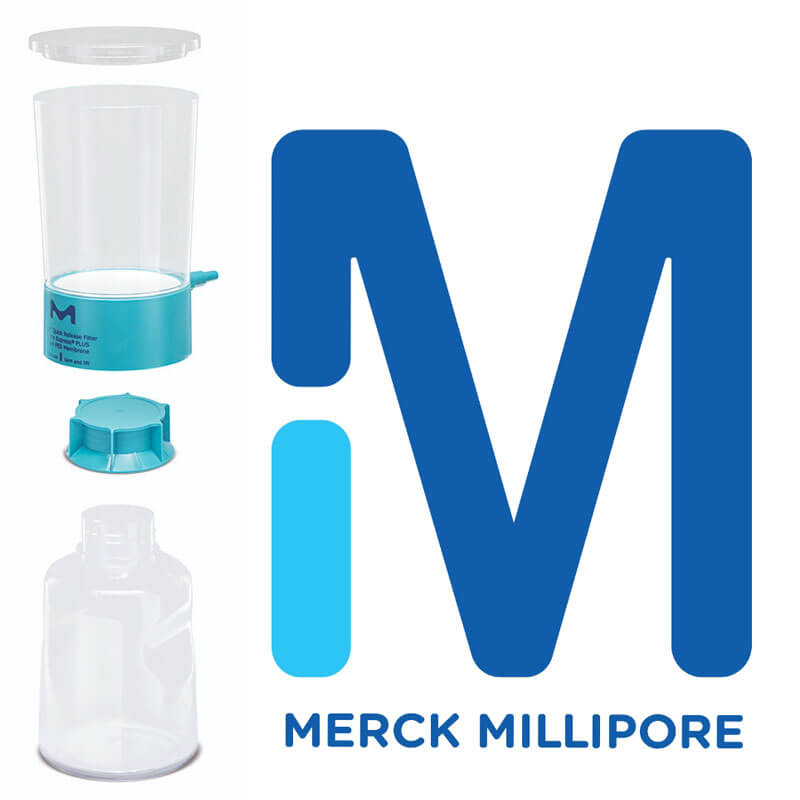

The Stericup Quick Release -GP Vacuum Filtration System is the most efficient single-use, disposable process for sterile media preparation. It combines a Steritop Filter Unit with a receiver flask for processing and storing volumes from ( 150mL – 500mL ) in a single ready- to- use format. It’s no tip, easy grip flask designed and balanced profile improve stability during filtration. The bottom of the receiver flask is slightly recessed, so you can conveniently stack capped flasks after filtration. You can also use Steritop bottle-top devices with your own sterile capture flask or bottle.

Important information:

You must supply the following materials to use the Stericup System.

• Vacuum Source
• Vacuum Tubing
• And if needed, you can use a media glass bottle no larger than 2L with a 33 or 45mm neck Size

The Stericup Plus Units are compatible with most aqueous solutions. Based on the information from technical publication material suppliers, laboratory tests and field evaluations, Millipore believes that the agents listed below under (USE WITH) are safe to use with the Stericup Plus Units. However, because of the effects of variability in temperature, concentrations and duration to exposure and other factors outside of their control, Millipore does not provide or imply warranty with respect to this information. Agent that is not listed should be tested prior to use or call Millipore Technical Service for Information.

Polyethersulphone (PES) is a hydrophilic membrane that has a very low protein binding and high flow characteristics. It is also certified for ion chromatography.

Use with: Strong Bases, Alcohols, Proteins, Peptides

Product Information:

Fitting Inlet: Funnel

Fitting Outlet: Receiver Flask

Colour Code :Clear Blue Adaptor

Max Operating Temp: 45dc

Receiver: 500mL Bottle with cap

Applications:

Stericup Quick Release-GP sterile vacuum filtration combines a 500mLSteritop bottle top filter unit, which uses a 0.22um pore size fast flow PES Express PLUS membrane, with a 500mL receiver flask for sterilizing tissue culture media, protein & DNA.

Applications: Sterile Filtration

Biological Information:

Media: Express Plus

Sterility:Sterile

Sterilization :Gamma Irradiation

Wettability: Hydrophilic

Physiochemical Information:

Pore size: 0.22um

Pressure/vacuum: Vacuum

Hold up volume :2.4mL

Dimensions:

Height: 263mm

Diameter: 12.5cm

Filtration area : 40cmsq

Filtration area: 40cmsq

Funnel Capacity: 500mL

Process Volume: 500mL

Volume: 500mL

Filter Diameter: 73mm

Nominal size: 0.22um

Materials Information:

Chemistry: Polyethersulphone (PES)

Device Material: Polystyrene
